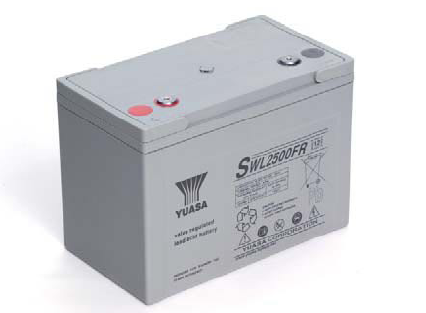

SWL2500 Yuasa

Product Description
£215.04
Maximum quantity available reached.
Sku:

Stock Due: Normally Within 2-7 Days

Description

SWL2500 General Specifications





1) Nominal Voltage

12



2) Nominal Wattage/Cell





10 min to 1.6V/Cell

490



5 min to 1.6V/Cell

650



3 min to 1.6V/Cell

750



3) Weight (Approx)/Kg

36



4) Energy Density (Wh/L)

95



5) Specific Energy





(Wh.kg) 10HR 36

31



6) Internal Resistance





(Approx)/mohm

6



7) Maximum (1 min)





discharge Current/A

500



8) Maximum Short Duration





(1 sec) Discharge Current





in Amperes 500

800



9) Operating Temperatures/°C





Charge

-15 to 50



Discharge

-20 to 60



10) Percentage Charge





Retention at 20°C





1 month

97



3 months

91



6 months

85



11) Standard Terminal Type

Lead Post with Brass insert





C








12) Torque Nm

4.76



13) Case Material

ABS



Dimensions / mm





Length +/-1

305



Width +/-1

173



Height +/-2

223


SWL Valve Regulated
Lead-Acid Batteries (VRLA)
The SWLrange is an enhanced NPL design resulting in an improved energy to density ratio, giving up to 40% extra discharge capacity. All other attributes and operational characteristics are the same, thereby maintaining the benefit of a common mechanical and electrical design for users of both products.
FEATURES
• Yuasa VRLA batteries can be used in any orientation excluding continuous use inverted.
• Standard case material is flame retardant to (UL94) HBØ.
• FR option case material is flame retardant to UL94:VØ
(oxygen index 30).
• SWLbatteries are manufactured in factories that comply with ISO9001:2000.
• FR option SWL’s comply with BS6290 Part 4 (1997).
• SWLbatteries comply with IEC 60896-21+22.


Specification

Dimensions
